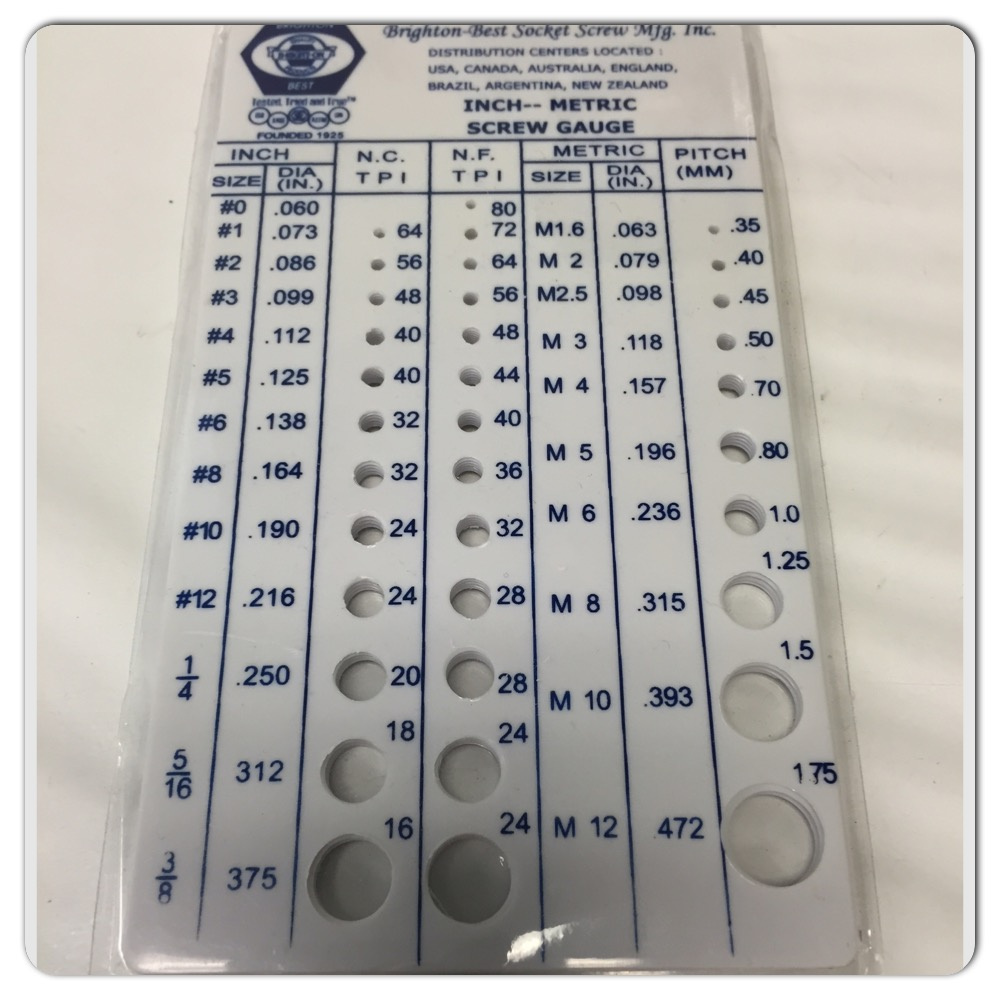

http://9fa0240b97d499a8f85f-b28de6cb85bb137f3d139a8f99453833.r79.cf2.rackcdn.com/946f04b7179bce7bba3aba4bad7c1498-3ffacfa987a9482b56daf376edcc7f39.jpg
Fastener Size Chart Charts Diagrams Graphs
https://chartdiagram.com/diagrams/Fastener-size-chart-1187x1536.jpg
Wood Screw Chart Woodworking Tools
https://i.pinimg.com/originals/a3/18/b8/a318b8397d4df609fbbbf05d66f8550f.png
Our user friendly metric thread chart offers comprehensive specification data for various metric screw sizes Our thread size chart covers M1 6 up to M68 For those of us who just refuse to think metric Approximate size comparison MM INCH 1mm 1 32 2mm 1 16 3mm 3 32 4mm 1 8 5mm 3 16 6mm just under 1 4 7mm just over 1 4 8mm 5 16 9mm 3 8 10mm just over 3 8 11mm 7 16 12mm just under 1 2 Metric Screws Metric Conversion Tools Assortments Screws by Head Style Screw
The values listed in the chart above are the recommended values for a class 2 thread fit The clearance drill sizes listed are the most commonly used sizes In our metric screw size chart above metric thread size is denoted by a series of numbers and letters that encapsulate various dimensions including the major diameter thread pitch and thread type The most common system adhered to is the ISO Metric Screw Thread where designations like M6x1 signify a major diameter of 6 mm and a pitch of 1 mm
